PetSafe aluminium · Timber & screens

One reliable range. Three ways to fit your home.

PetSafe aluminium pet doors for timber doors, suitable screens or a paired installation through both. Explore sample installations and four sizing options.

Compare sizes Enquire now

Small · Medium · Large · Extra large

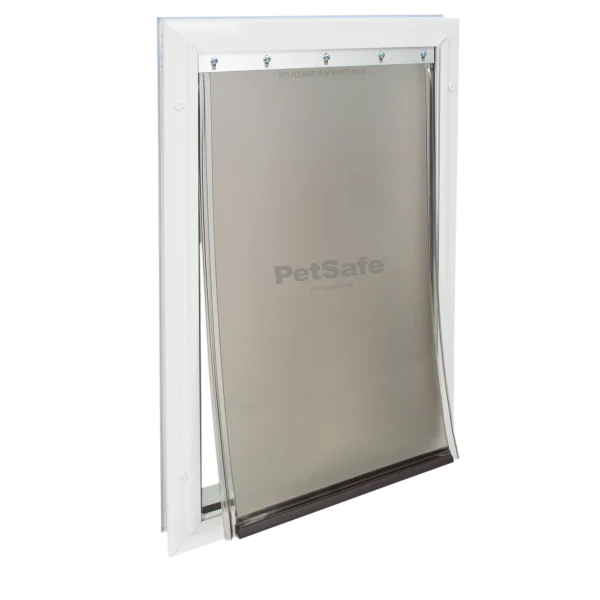

PetSafe Staywell aluminium pet door with branded flexible flap

Choose your installation

Timber, screens or both.

A solid aluminium frame, a soft flap and a slide-in closing panel. We recommend the size and mounting arrangement to suit your pet and your door.

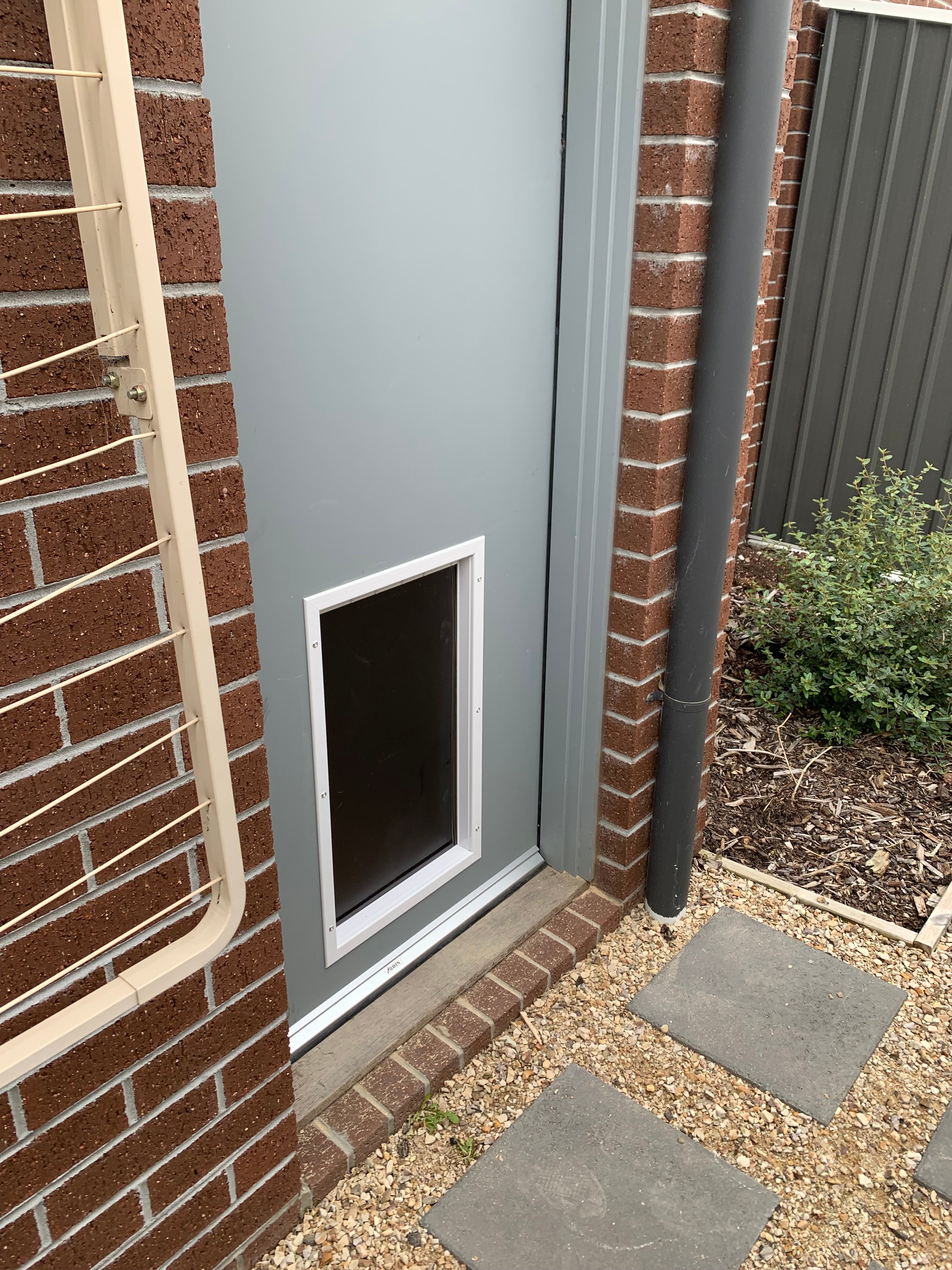

PetSafe Staywell aluminium door installed in a timber door

Timber doors

A clean fit in your wooden door.

The aluminium frame sits neatly around a prepared opening in the timber. A flexible flap gives your pet easy access, and the included closing panel lets you close the opening when needed.

See sizing options →

PetSafe Staywell · timber installation

PetSafe branded aluminium door for an assessed supported screen installation

Screen doors

Pet access with the breeze coming through.

Suitable screen and security doors can be assessed for a supported aluminium pet door installation. We check the mesh, frame, reinforcement and available space before choosing the fitting method.

See sizing options →

PetSafe Staywell · product shown for screen fitting

PetSafe aluminium unit for the timber door

Matching PetSafe aluminium unit for the screen door

Timber + screen

A clear path through both doors.

Two aligned pet doors let your pet pass through the timber door and the screen when both are closed. We check the gap, opening height and flap movement so the two doors work together.

See sizing options →

Two PetSafe Staywell units · paired product example

PetSafe Staywell aluminium

Four sizes. From small pets to larger dogs.

All dimensions are in millimetres, width × height. Flap opening is the space your pet passes through; outer frame and cut-out dimensions are different.

Up to 7 kg

Small

132 × 206 mm

Flap opening · width × height

Outer frame: 201 × 298 mm
Cut-out: 150 × 245 mm

Breed guide
Cats, small Jack Russells and Yorkshire Terriers

Enquire about small →

Up to 18 kg

Medium

209 × 311 mm

Flap opening · width × height

Outer frame: 277 × 400 mm
Cut-out: 225 × 348 mm

Breed guide
Smaller Border Collies and Spaniels

Enquire about medium →

Up to 45 kg

Large

260 × 413 mm

Flap opening · width × height

Outer frame: 329 × 502 mm
Cut-out: 277 × 451 mm

Breed guide
Labrador, Golden Retriever and German Shepherd

Enquire about large →

Up to 100 kg

Extra large

349 × 603 mm

Flap opening · width × height

Outer frame: 417 × 692 mm
Cut-out: 366 × 642 mm

Breed guide
Great Dane and Saint Bernard

Enquire about extra large →

Weight and breed examples are a starting point. We confirm the opening, mounting height and clearance for your pet. For a timber-and-screen installation, both openings need to align and allow the flaps to move freely.

Dimensions: PetSafe Australia specifications · Manufacturer breed guide.
